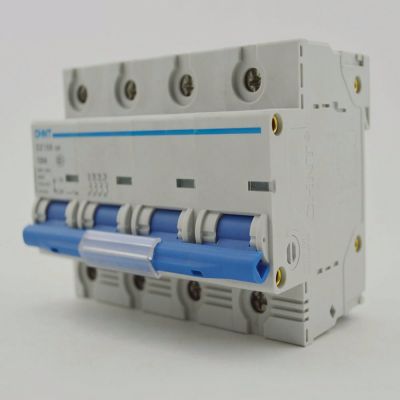

CHINT mcb DZ158-125 4P 80A 100A 125A Circuit Breaker Switch Protection Device
DZ158 Moulded Case Circuit Breaker
General
1.1 circuit breaker chint mcbamp; Function
protection of circuits against short-circuit currents, protection of circuits against overload currents, switch,isolation.
1.2 circuit breaker chint mcbamp; Selection
Technicaldata of the network at the point considered: the earthing systems (TNS, TNC),short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device,Network normal voltage.
1.3 circuit breaker chint mcbamp; Approvals and certificates
circuit breaker chint mcbamp; Specification:
|
|
Standard |
|
IEC/EN 60947-2 |
|
Electrical features |
Rated current In |
A |
63, 80, 100, 125 |
|
Poles |
|
1P, 2P, 3P, 4P |
|
|
Rated voltage Ue |
V |
230/400~240/415 |
|
|
Insulation voltage Ui |
V |
500 |
|
|
Rated frequency |
Hz |
50 |
|
|
Rated breaking capacity |
kA |
6/10 |
|
|
Rated impulse withstand voltage(1.2/50) Uimp |
V |
4000 |
|
|
Dielectric test voltage at ind. freq. for 1 min |
kV |
2.0 |
|
|
Pollution degree |
|
3 |
|
|
Thermo-magnetic release characteristic |
|
8-12In |
|
|
Mechanical features |
Electrical life |
|
1,500 (In=63A, 80A, 100A) 1,000 (In=125A) |
|
Mechanical life |
|
8,500 (In=63A, 80A, 100A) 7,000 (In=125A) |
|
|
Contact position indicator |
|
Yes |
|
|
Protection degree |
|
IP20 |
|
|
Reference temperature for setting of thermal element |
|
30 |
|
|
Ambient temperature (with daily average“35?) |
|
-5...+40(Special application please refer to P28 for temperature compensation correction) |
|
|
Storage temperation |
|
-25...+70 |
|
|
Installation |
Terminal connection type |
|
Cable/Pin-type busbar |
|
Terminal size top/bottom for cable |
mm2 |
16~50 |
|
|
AWG |
6-1/0 |
||
|
Terminal size top/bottom for busbar |
mm2 |
16~35 |
|
|
AWG |
6-2 |
||
|
Tightening torque |
N*m |
3.5 |
|
|
In-Ibs. |
31 |
||
|
Mounting |
|
On DIN rail EN 60715 (35mm) by means of fast clip device |
|
|
Connection |
|
from top |
|
|
Combination with accessories |
Auxiliary contact |
|
Yes |

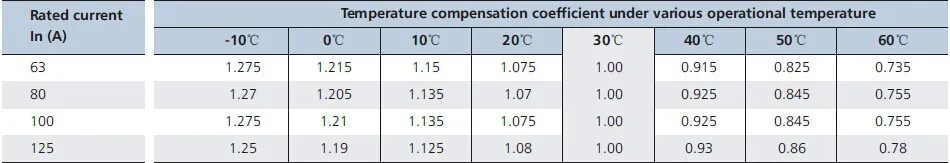

circuit breaker chint mcbamp; Temperature derating
The maximum permissible current in a circuit breaker depends on the ambient temperature where the circuit breaker is
placed. Ambient temperature is the temperature inside the enclosure or switchboard in which the circuit breakers are installed.
The reference temperature is 30 centigrade .
