CHIN DZ47LE63

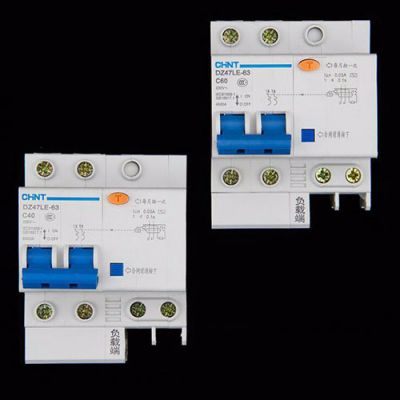

CHINT Air Switch House Home circuit breaker DZ47LE63 2P 40A 50A 60A DIN Rail Mounted Earth Leakage Circuit Breaker
Price: $10-$12 Discount Price: $7-$7.9
Stock in:China
  • Shipping methods
  • Fist 0.5kg cost (≤0.5kg)
  • Add every 0.5kg cost
  • Quantity:
      Total weight: 0.25kg
    Product Details

    CHINT Air Switch House Home circuit breaker DZ47LE63 2P 40A 50A 60A DIN Rail Mounted Earth Leakage Circuit Breaker

    APPLICATION

    DZ47LE series circuit breaker, full name of residual current circuit breaker with overcurrent protection, is mainly used in the rated voltage 230V for single pole two- wire,2-pole or 400V for 3-pole, 3-pole 4-wire, 4-pole and rated current up to 63A. When somebody gets an electirc shock or the residual current of the circuit exceeds the fixed value, the breaker can promptly and automatically cut off the power in very short time to protect the personal safety and to prevent the equipement from the fault resulted from the residual current. It can protect the line and motor from overload and short circuit. It can also be used for infrequent line conversion and infrequent motor start. It conforms with the standards of IEC61009.

    SPECIFICATION

    Model

    DZ47LE-63

    Pole

    1P + N.2P

    3P, 3P + N, 4P

    Rated Current (A)

    6,10,16,20,25,32,40,50,63

    Rated Voltage (V)

    230

    400

    Instaneous Release Type

    C,D

    Rated Residual Making/ Breaking Capacity lam(A)

    2000

    Rated Residual Action Current lAn(A)

    0.03,0.05,0.1,0.3

    Rated Residual Non-action Current lino(A)

    0.5ln

    RESIDUAL CURRENT BREAKING TIME

    In

    (A)

    lAn

    (A)

    Breaking time(s) when equals to rating following

    lAn

    2IAn

    5IAn

    5,10,20,50,100,200,500a(A)

    IAtb

    6-63

    0.03,0.05,0.1,0.3

    0.1

    0.06

    0.04

    0.04

    0.04

    DIMENSION
