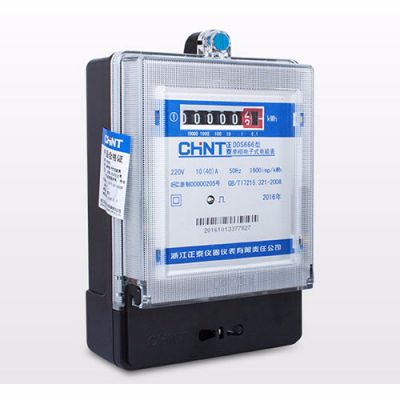

CHNT DDS666 Single-phase electronic energy meter electronic table household meter

Feature:

DDS666 single-phase electronic energy meter is designed and manufactured on the basis of residents’ power demand. It is used to measure AC active energy with rated frequency 50Hz and reference voltage 220V.

Function deions：

Accurate measuring forward and backward active energy with backward active energy added to forward energy;

Meter is designed and manufactured through SMT technology by industrial components featured by reliable performance and low power consumption;    Display options: Register or LCD.

Infrared communication port, RS485 communication port for easy data exchange

Parameter:

Product Name: Single - phase electronic energy meter
Product Type: DDS666
Rated voltage: AC220V
Frequency: 50HZ
Specifications: 220V1.5 (6) A, 220V5 (20) A, 220V10 (40) A
220V15 (60) A, 220V30 (100) A
Power consumption: <= 2W;
Operating temperature:
normal operating temperature: -25-55℃
Extreme operating temperature: -40-70℃
Starting current: <= 0.005IB

Parcel include:

1 PCS CHNT DDS666 Single-phase electronic meter
