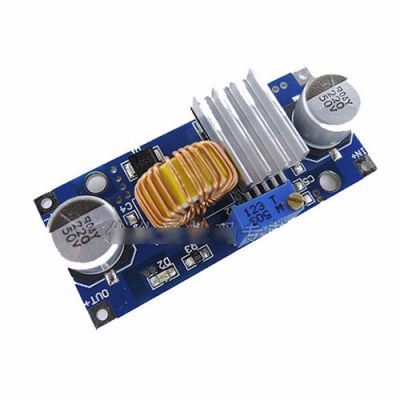

DC-DC XL4015 Adjustable Buck Module
DC-DC XL4015 Adjustable Buck Module input 4-38V output 1.25-36V High Power 96% High Efficiency Low Ripple 5A
Price: $10
Discount Price: $7.9
Stock in:China
Shipping methods
Fist 0.5kg cost (≤0.5kg)
Add every 0.5kg cost
color：
Quantity：
Recommend
Product Details
DC-DC XL4015 Adjustable Buck Module input 4-38V output 1.25-36V High Power 96% High Efficiency Low Ripple 5A
Module performance and features:
Module nature: Non-isolated buck module (BUCK)
Input voltage: 4-38V (input please try not to exceed 38V)
Output voltage: 1.25-36V continuously adjustable
Output current: 0-5A, it is recommended to use within 4.5A
Output Power: Recommended for use within 75W.
Operating temperature: -40 ~ +85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 96% (efficiency and input and output voltage, current, pressure related)
Load regulation: S (I) ≤0.8%
Voltage regulation: S (u) ≤0.8%
Power indicator: Yes
Short-circuit protection: Yes (limit current 8A)
Over-temperature protection: Yes (automatic shutdown after over-temperature output)
Input reverse polarity protection: None, (if necessary, input high-current diode in series)
Installation: 2 3mm screws
Wiring: welding, V-IN as the input, V-OUT as the output
Module size: Length 54mm Width 23mm Height 18mm
Weight: 16g
