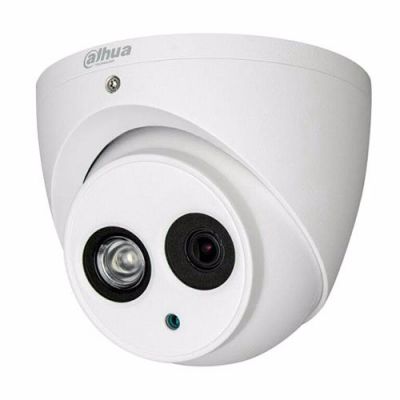

Camera                    DH-HAC-HDW1400EMP

Image Sensor

1/3" CMOS

Effective Pixels

2688(H)×1520(V), 4.1MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 50m (164feet)

IR On/Off Control

Auto / Manual

IR LEDs

1

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (2.8mm, 6mm, 8mm Optional)

Max Aperture

F2.0

Angle of View

H: 84.8° (99.7°/52.5°/32.9°)

Focus Control

N/A

Close Focus Distance

1100mm (800mm/2200mm/4000mm)

43.3'' (31.5''/86.6''/157.5'')

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated d on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Detect

25px/m

(8px/ft)

2.8mm: 63m(208ft)

3.6mm: 80m(262ft)

6mm: 117m(385ft)

8mm: 161m(527ft)

Observe

63px/m

(19px/ft)

2.8mm: 25m(83ft)

3.6mm: 32m(105ft)

6mm: 47m(154ft)

8mm: 64m(210ft)

Recognize

125px/m

(38px/ft)

2.8mm: 13m(42ft)

3.6mm: 16m(53ft)

6mm: 23m(77ft)

8mm: 32m(105ft)

Identify

250ppm

(76px/ft)

2.8mm: 6m(21ft)

3.6mm: 8m(26ft)

6mm: 12m(39ft)

8mm: 16m(53ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video

Resolution

4MP (2560×1440)

Rate

25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

N/A

Eelectrical

Power Supply

12V DC ±25%

Power Consumption

Max 4.1W (12V DC, IR on)

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Ingress Protection &Vandal Resistance

IP67

Construction

Casing

Aluminium

Dimensions

Φ106mm×93.7mm (Φ4.17"×3.69")

Net Weight

0.42kg (0.93lb)

Gross Weight

0.55kg (1.21lb)
