Model

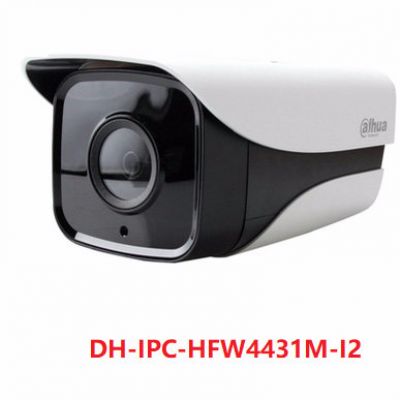

DH-IPC-HFW4431M-I2

Camera

Image Sensor

1/2.3” 4mpprogressive scan CMOS

Effective Pixels

2592(H)x1520(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/10000s

Min. Illumination

0.1Lux/F1.6 (Color), 0Lux/F1.6(IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. IR LEDs Length

80m

Day/Night

Auto(ICR)/Color/B/W

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Lens

Focal Length

3.6mm(6mm optional)

Max Aperture

F1.6

Focus Control

Manual

Angle of View

H:80°

Lens Type

Fixed lens

Mount Type

Board-in Type

Video

Compression

H.264/ MJPEG

Resolution

4MP(3840×2160)3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) / CIF(352×288/352×240)

Rate

Main Stream

4K(1~15fps)/3M/1080P/ (1 ~ 25/30fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 20K ~ 16Mbps

Audio

Compression

N/A

Interface

N/A

Network

Ethernet

RJ-45 (10/100-T)

Wi-Fi

N/A

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Compatibility

ONVIF,PSIA,CGI

Max. User Access

20users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

N/A

RS485

N/A

Alarm

N/A

PIR Sensor Range

N/A

General

Power Supply

DC12V, PoE (802.3af)

Power Consumption

<7.5W

Working Environment

-30°C~+60°C, Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Dimensions

96mm×89mm

Weight

620g
