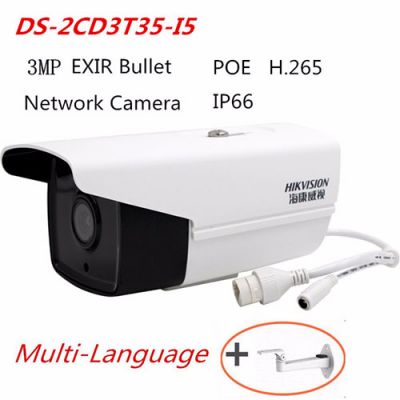

DS-2CD3T35-I3 / DS-2CD3T35-I5 / DS-2CD3T35-I8

Camera

Image Sensor:

1/3" Progressive Scan CMOS

Min. Illumination:

0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR

Shutter time:

1/25(1/30) s to 1/100,000 s

Lens:

4mm, Angle of view: 76.5°(6mm,8mm,12mm,16mm(I3 no)optional)

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

Digital WDR

Digital noise reduction:

3D DNR

Video Compression:

H.264/M-JPEG

Compression Standard

Vedio standard:

H.265 / H.264 / MJPEG

H.264 code:

Line Profile / Main Profile

H.265 code:

Main Profile

Compression output:

32 Kbps~8Mbps


Max. Image Resolution:

2048×1536

Rate:

50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)

Image Settings:

Rotate mode, Saturation, Brightness, Contrast adjustable

by client software or web browser

BLC:

Yes, zone configurable

ROI:

Yes, configurable areas

Network

Alarm Trigger:

Motion detection, Dynamic Analysis, Tampering alarm

Protocols:

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,

PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour

Security:

User authentication, watermark

System Compatibility:

ONVIF, PSIA, CGI, ISAPI

Interface

Communication Interface:

1 RJ45 10M / 100M ethernet interface

General

Operating Conditions:

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity 95% or less (non-condensing)

Power Supply:

12 VDC ± 10%, PoE (802.3af)

Power Consumption:

I3: 6W MAX; I5: 7.5W MAX;  I8: 10.5W MAX;

Weather Proof:

IP66

IR Range:

I3: 30m; I5: 50m;  I8: 80m;

Dimensions:

194.04×93.85×89.52mm

Weight:

1000g
