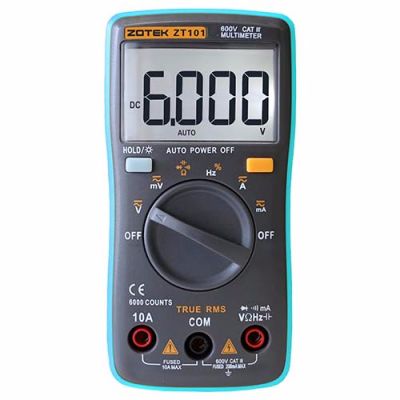

High precision Digital Multimeter 6000 counts Backlight AC/DC Ammeter Voltmeter Ohm Portable Meter

Parameter：

Model:ZT101

LCD display

Max display:6000 counts

Polarity identification

Measurement mode:double-integral style A/D transform

Sample  rate:3 times per second

Over range indication:OL

Low voltage indication

Working Environment:0-40 degrees,relative humidity <80%

Size:65x130x32 mm

Auto Range

True RMS measurement

Resistance capacitance frequency file high voltage 550V protection

Large screen display, the maximum of 6000 words

Sampling rate: about 3 times per second

Backlight display

Data retention

Polarity automatic recognition

Low voltage display

10A large current measurement, mA level small current measurement

Automatic shutdown

Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance,

Diode / off measurement, frequency and duty ratio measurement.

* frequency measurement range: to 10MHz 1Hz

* capacitance measurement range: to 6000uF 10pF

* AC voltage measurement range: to 750V 0.1mV

* DC voltage measurement range: to 1000V 0.1mV

* AC current measurement range: to 10A 0.1uA

* DC current measurement range: to 10A 0.1uA

* resistance measurement range: 0.1 60M to

* width ratio measurement range: 1% to 99%

Specification parameter:

(1) frequency: 5/50/500/5k/50k/500k/5M/10M (+ 0.1+3)

(2) capacitance: 10nF (+ 5.0+20), 100nF/1uF/10uF/100uF (+ 2.0%+5), 1000uF/10000uF (+ 5.0%+5) ()

(3) DC voltage: 600mV (+ 1.0%+10), 6V/60V/600V/1000V (+ 0.5%+3)

(4) AC voltage: 600mV (+ 3.0%+3), 6V/60V/600V/750V (+ 1.0%+3)

(5) DC current : 60mA/600mA (+ 1.5%+3), 10A (+ 1.5%+3)

(6) AC current :60mA/600mA (+ 1.5%+3), 10A (+ 1.5%+3)

(7) resistance: 600 (+ 0.5%+3), 6K/60K/600K/6M (+ 0.5%+2), 60M (+ 1.5%+3)

(8) measurement methods: double integral A/D converter

(9) share ratio: 1% to 99% (+ 1%)

(10) ultra range display: OL

(11) working environment: 0~40 C, relative humidity < 80%

(12) power supply voltage: 3V (AAA x2 Pcs 1.5V)

(13) product size: 130*65*30mm

(14) weight: 190g

Parcel content:

Multimeter x 1

manual x1,

Electronic Probe x 1pair

Bag x 1
