DS-2CD2442FWD-IW

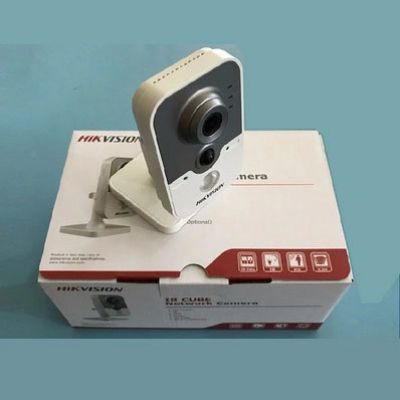

Hik DS-2CD2442FWD-IW 4MP POE Wifi IP Camera with Buit-in Micro SD card slot PIR Cube Security CCTV Camera
Price: $115
Discount Price: $96
Stock in:China
Shipping methods
Fist 0.5kg cost (≤0.5kg)
Add every 0.5kg cost
color：
Quantity：
Recommend
Product Details
Hik DS-2CD2442FWD-IW 4MP POE Wifi IP Camera with Buit-in Micro SD card slot PIR Cube Security CCTV Camera
Key Feature
- Up to 4.0 megapixels high resolution
- Full HD1080p Video
- Up to 10m IR
- PIR
- 120 dB WDR/3D DNR/BLC
- Support On-board Storage, up to 128GB
- Built-in Wi-Fi
Specification
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: 0.01Lux @(F1.2,AGC ON), 0 Lux with IR ; 0.028Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Lens: 2.8 mm, horizontal field of view 105.8° [2.0 mm (126°), 4 mm (83°), optional]
Lens Mount: M12
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.264/MJPEG
H.264 code profile: Line Profile/Main Profile
Video bit rate: 32Kbps~8Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2
Audio bit rate: 64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2)
Max. Image Resolution: 2688 * 1520
Rate: 50Hz: 20fps (2688 * 1520), 25fps (1920 * 1080, 1280 * 720)
60Hz: 20fps (2688 * 1520), 30fps (1920 * 1080, 1280 * 720)
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: Yes, zone configurable
ROI: support
3D DNR: support
Network
Network Storage: NAS (Support NFS,SMB/CIFS)
Alarm Trigger: Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility: ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm Input: 1
Alarm Output: 1
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Wi-Fi Specification
Wireless Standards:IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: 20/40MHz Support
Modulation Mode: 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Power: 11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm
Receive Sensitivity: 11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)
Transmission Rate: 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range: 50m(depend on environment)
Protocols: IEEE802.11b, 802.11g, 802.11n
General
Operating Conditions: -10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: Max. 5W
IR Range: 10 meters
PIR: Angle: 90°, Range: 8m
Dimensions: 2.8mm, 4mm lens: 72.3 * 91.9 * 131.3mm (2.85” * 3.62” * 5.17”)
Weight: Approx. 400g (0.88lbs)
